High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing

  • 1
  • 2

Brand Name : Firepower

Model Number : 3LT400-W

Place of Origin : CHINA

MOQ : 1

Price : negotiable

Payment Terms : T/T

Supply Ability : 1000/month

Delivery Time : 3 month

Packaging Details : carton with sponge

Product name : Three Axis Motion Simulation Rate Turntable

Payload : 40kg

Table size : Φ400mm

Computer Port : RS232/RS422

Location Range : ±0- ±360°

Position Accuracy : ±1~3''

Rotation accuracy : ±1~3''

Table Height : 540mm

Mesa Flatness : 0.02mm

Tempe. Control Accuracy : ±0.5ºC

Contact Now

High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing


  • Product Description

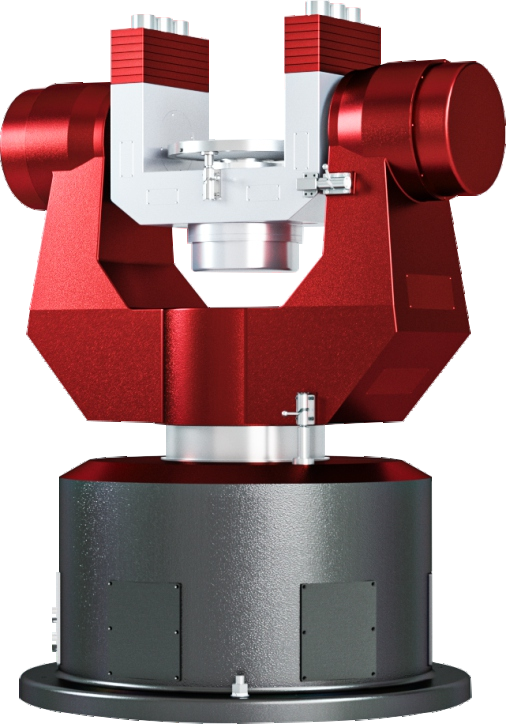

The Three-Axis Turntable with Temperature Chamber Series is a specialized testing device designed to support full-temperature range testing. It provides motion excitation in three axes—including angular position, angular rate, and angular acceleration—making it ideal for testing gyroscopes, inertial measurement units, and accelerometers.

This system consists of four main components: the mechanical body, temperature control chamber, electrical measurement and control cabinet, and the compressor with piping support. The mechanical body features a U-U-T type three-axis structure, comprising the base, outer frame shaft, middle frame shaft, and inner frame shaft.

  • Technical Parameter
Structural form
Three axis continuous rotation with chamber
Mesa material
Stainless steel/aluminum alloy(Optional)
Maximum load weight
40KG
Table size
Φ400mm
Table height
540mm
Rotation accuracy
±1~3″ (Optional)
Angular position range
±0~ ±360°
Angular position accuracy
±1~3″ (Optional)
Angular resolution
0.0001°
Angular rate range
0.001~4500°/s

Angular rate accuracy
ω<1°/s
1<ω<10°/s
10<ω°/s

Speed smoothness
1 × 10-3
1 × 10-4
5 × 10-5

Maximum angular acceleration

Inner4500°/s2
Middle2000°/s2
Outer1000°/s2
Rate resolution
0.0001°
Slip ring number
10~80(Optional)
System bandwidth
5~ 80Hz(Optional)
Slip-ring voice
0.03V
Tank range
-60~+100ºC
Tempe. control accuracy
±0.5ºC

High-Precision Three Axis Temperature Chamber Rate Turntable for Gyroscope INS MEMS Sensor testing
