F120 HIGH PERFORMANCE FIBER GYRO LOW BIAS OPTICAL ...
Single axis fiber gyro reliable optic gyro low power inertial sensor

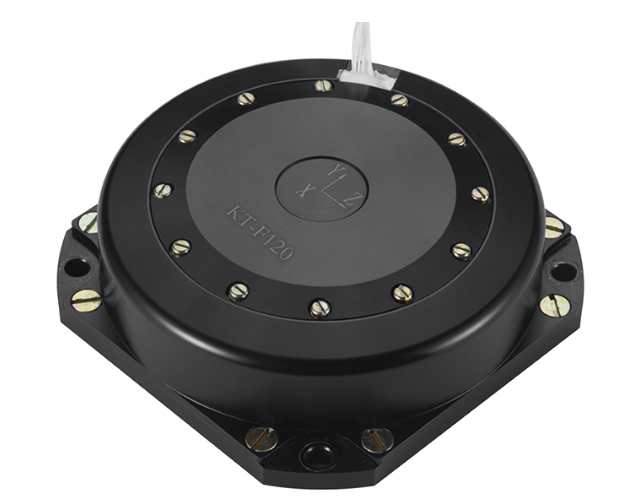

F120 single-axis fiber optic gyroscope is an all-solid-state high-precision angular rate inertial sensor device integrating optics, mechanics and electricity. The product has the characteristics of high precision and high reliability.
The product has zero bias stability less than or equal to 0.015°/h (10s smooth), response frequency bandwidth, ±5V DC power supply, power less than 5W, and adopts RS422 digital communication mode, which is convenient for users to use. It is an ideal inertial device to replace traditional mechanical gyroscopes.
Application areas: high-precision inertial navigation systems, positioning and orientation systems, attitude measurement systems, servo stabilization systems, etc.
Features
● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.
● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.
● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.
● QuichLaunch technology -minium activation time with no external calibration required.
● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.
● Noise isolation and compression -significantly reduces the angle random walk.
● SelfTrack technology -improves the gyro dynamic range
Applications
●UAV/AUV/Helicopter
●Tactical nuclear weapons
●Aeronautics and astronautics
●Integrated navigation system
●inertial platform stabilizing
●Vehicle navigatio
| No. | Item | unit | value |
| 1 | dynamic range | (°)/s | ±300 (adjustable) |
| 2 | stable time | s | ≤30 |
| 3 | zero bias stablity (10s smooth) | (°)/h | ≤0.015 |
| 2h continuous test, 100s smooth | ≤0.005 |
| 4 | zero bias repeatablity | (°)/h | ≤0.01 |
| 5 | full temp zero bias stability | (°)/h | ≤0.02 |
| 6 | full temp zero bias repeatability | (°)/h | ≤0.02 |
| 7 | random walk coefficient | °/h1/2 | ≤0.001 |
| 8 | shreshold | (°)/h | ≤0.005 |
| 16 | size | mm | 120×120×38 |
| 17 | power supply | V | ±5 |
| 19 | weight | g | ≤900 |
| 20 | installation hole di | mm | 94×94 |

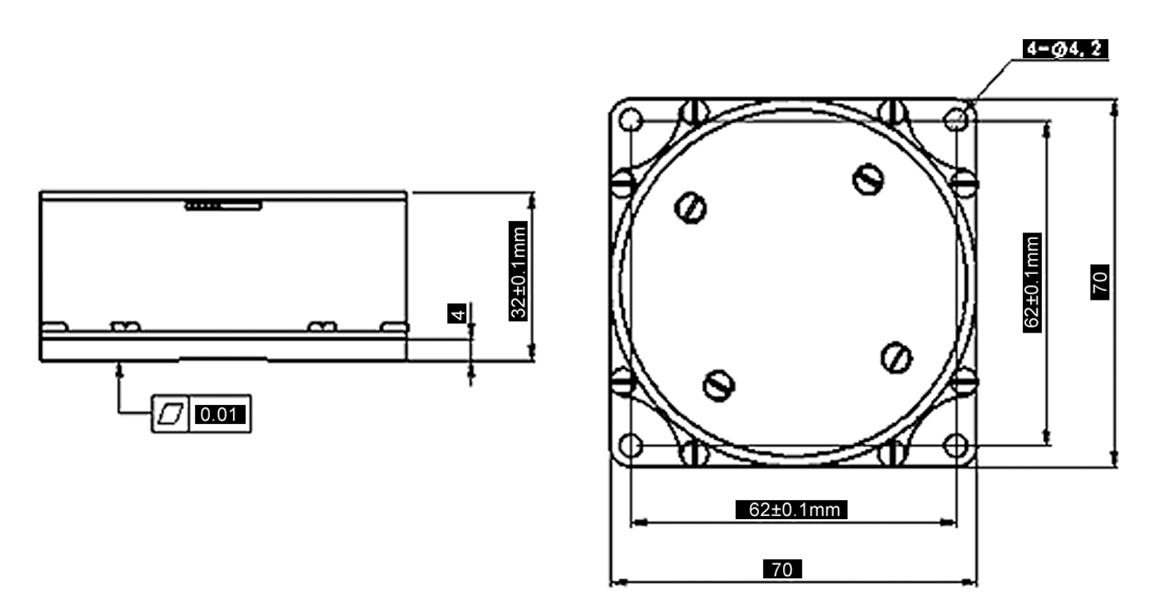

Dimensions
