ADIS16475 MEMS Inertial Measurement Unit Module with SPI Interface

Brand Name : FIREPOWER

Model Number : 16475C

Certification : CE

Place of Origin : China

MOQ : 1

Price : 200$

Payment Terms : L/C,D/P,T/T

Supply Ability : 1 week for sample

Delivery Time : 1 week

Packaging Details : Sponge + Carton

Gyro measuring range : ±500°/s

Scale factor nonlinearity : 100ppm

Random walk : 0.15°/√h

Bandwidth : 345Hz

Acc range : ±8g

Scale factor repeatability : 500ppm

Update speed : 2.0kSPS

Supply current : 20mA

Contact Now

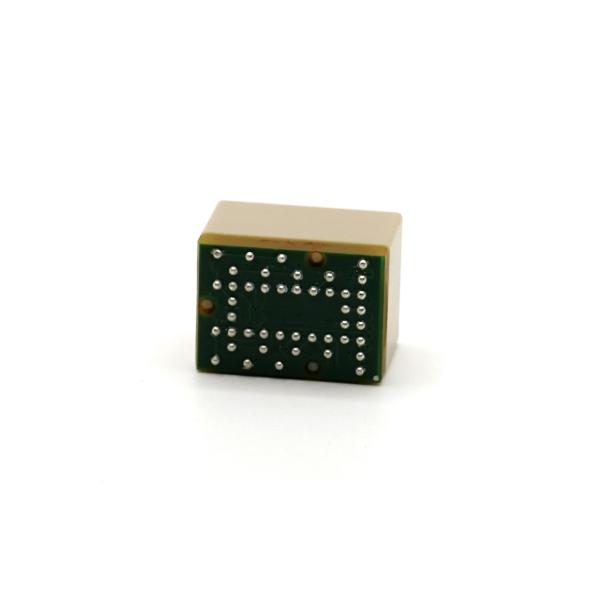

Miniature MEMS Inertial Measurement Unit Module ADIS16475
The ADIS16475C is a high-precision, miniaturized MEMS motion sensor module containing a three-axis gyroscope and three-axis accelerometer. Each inertial sensor is combined with signal conditioning circuitry to provide a simple interface for data acquisition and configuration control using an SPI interface and register structure. The module is available in a 100-ball BGA package measuring approximately 15 mm * 11 mm * 11 mm.
Key Features
  • High-precision MEMS motion sensing technology
  • Three-axis gyroscope and three-axis accelerometer
  • Simple SPI interface for data acquisition
  • Compact 100-ball BGA package (15 mm * 11 mm * 11 mm)
  • Integrated signal conditioning circuitry
Technical Specifications
Parameter Test Conditions Max Typical Minimal Unit
Gyroscope
Measuring range ±500 °/sec
Scale factor X_GYRO_OUT and X_GYRO_LOW (32-bit) 2,621,440 LSB/°/sec
Scale factor nonlinearity Best straight line fit, input angular rate 500dps 100 ppm
Zero-bias instability Allan, 1 σ 2.5 3.0 °/h
Random walk 1 σ 0.15 0.20 °/√h
Bandwidth -3dB 345 Hz
Accelerometer
Measuring range ±8 g
Scale factor X_ACCL_OUT and X_ACCL_LOW (32-bit) 2,621,44000 LSB /g
Zero-bias instability Allan, 1 σ 25 50 ug
Bandwidth -3dB 393 Hz
General Specifications
Start time 1000 ms
Update speed 2.0 kSPS
Operating voltage range VDD 3.0 3.6 V
Supply current VDD = 3.3 V 17 20 mA
Outline Drawings
ADIS16475 MEMS Inertial Measurement Unit Module with SPI Interface ADIS16475 MEMS Inertial Measurement Unit Module with SPI Interface ADIS16475 MEMS Inertial Measurement Unit Module with SPI Interface
